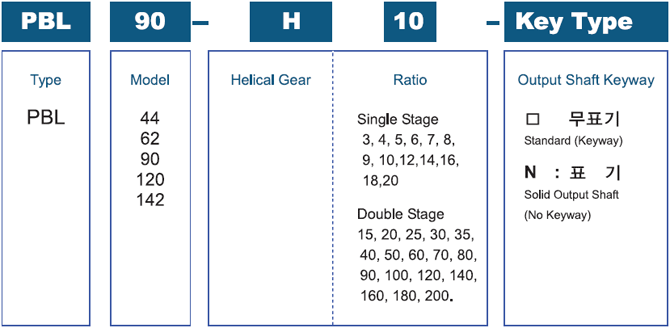

Indication of Model Numbers

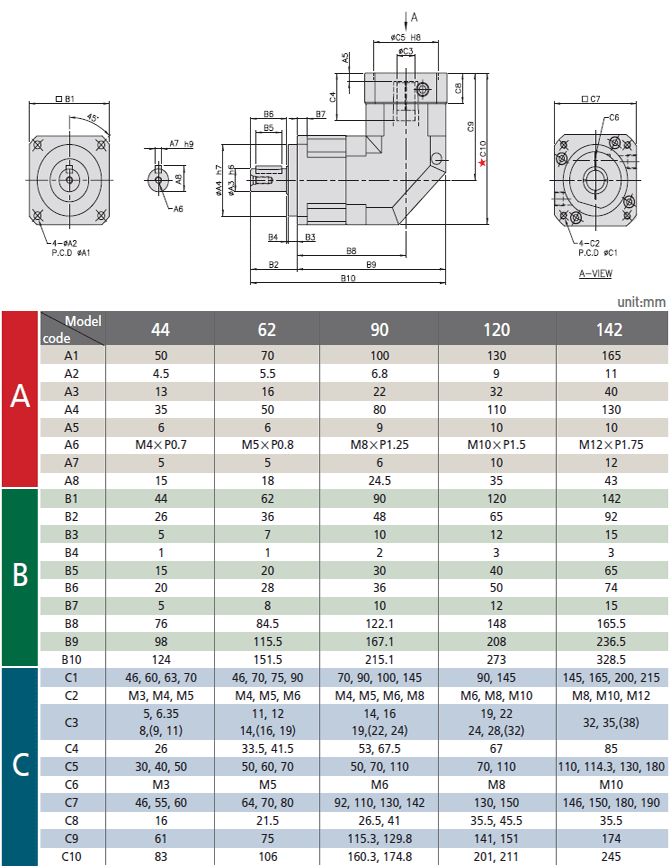

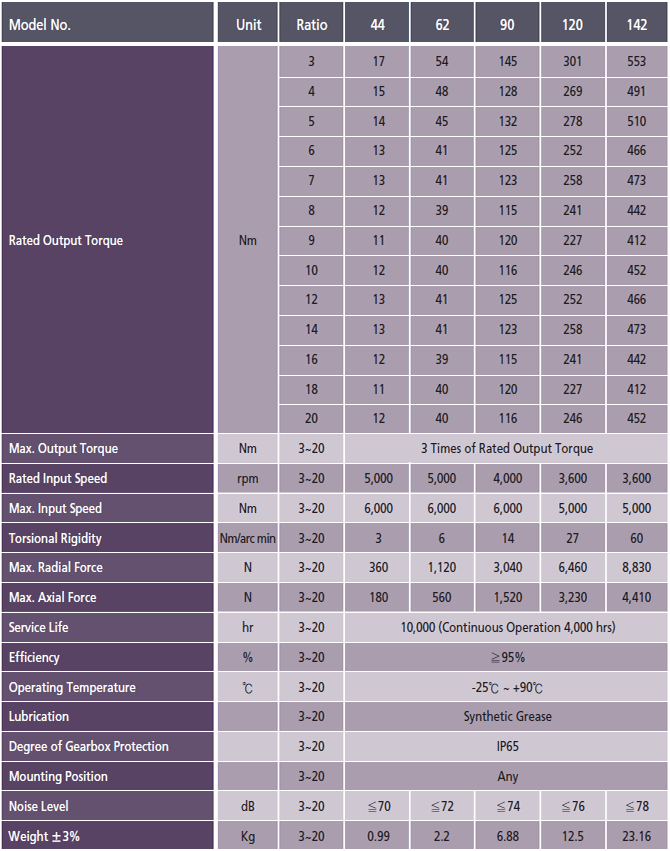

PBL(44~142)-H Single Reduction RATIO 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20



- Mass Moments of Inertia (kg.cm2)

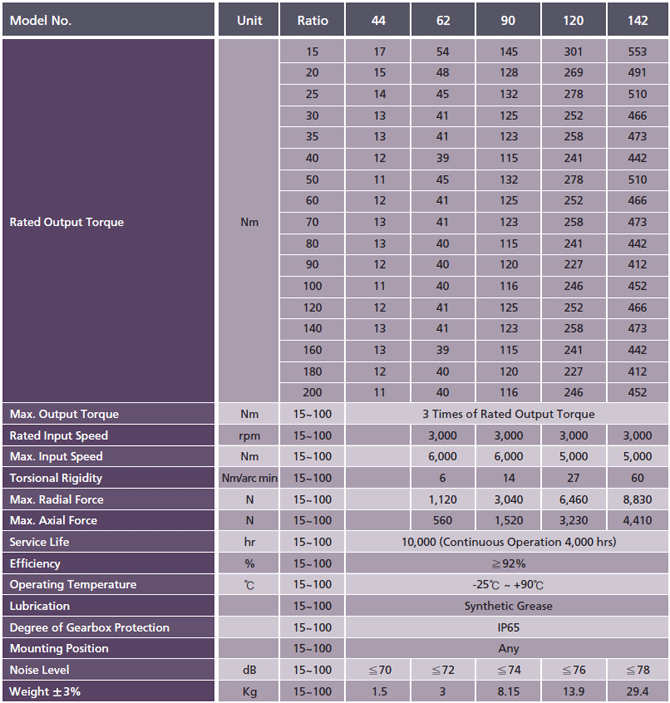

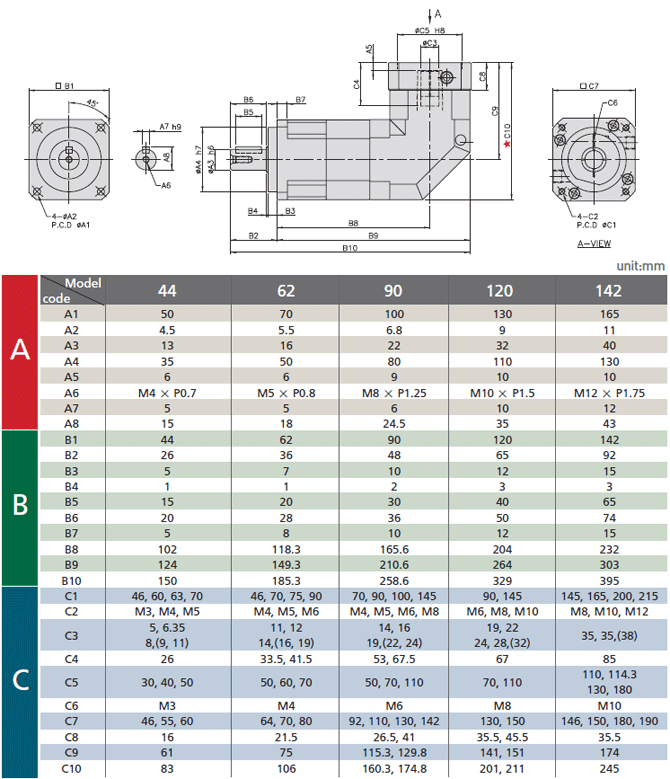

PBL(44~142)-H Double Reduction RATIO 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180,200



- Mass Moments of Inertia (kg.cm2)
