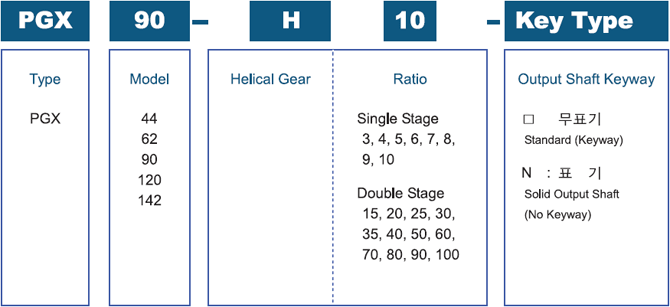

Indication of Model Numbers

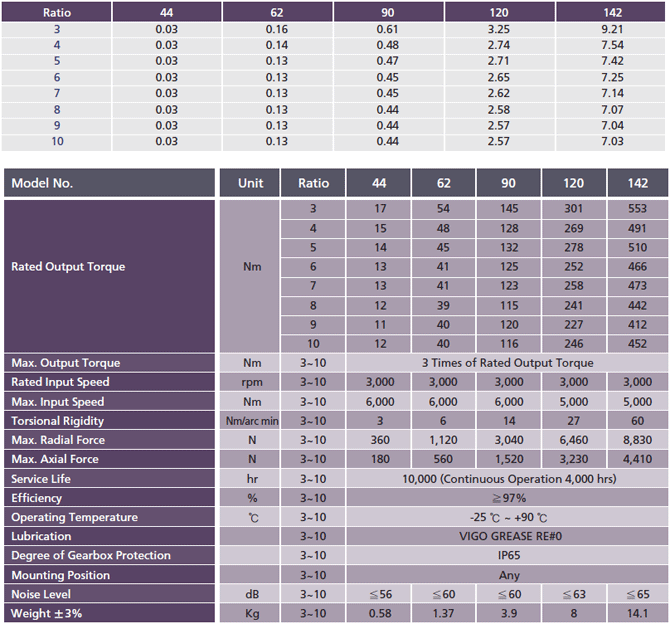

PGX(44~142)-H Single Reduction RATIO 3, 4, 5, 6, 7, 8, 9, 10



- Mass Moments of Inertia (kg.cm2)

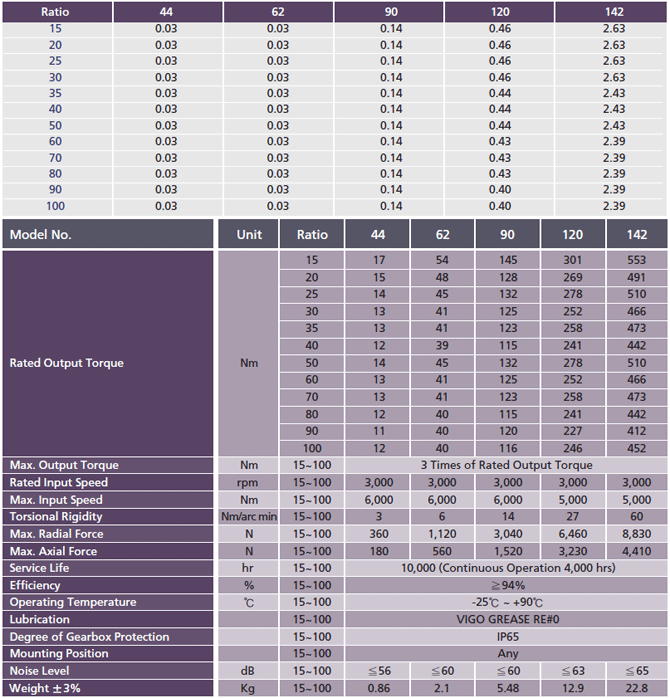

PGX(44~142)-H Double Reduction RATIO 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100



- Mass Moments of Inertia (kg.cm2)
