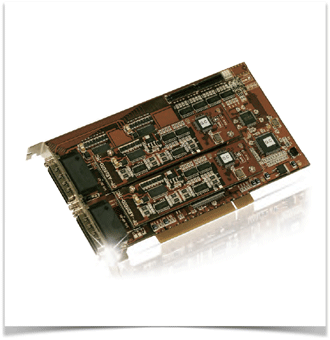

  64 Channel isolated digital input
  64 Channel isolated digital output
  Up to 64 Channel Input Simultaneous Latch Function
  Up to 64 Channel Output Simultaneous output Function
  Digital Input Integral Filter
  Over-current protection circuit
[ 파생모델 ]

TMC-AE16DIO (16/16점 DI/DIO)
TMC-AE32DIO (32/32점 DI/DIO)
TMC-AE48DIO (48/48점 DI/DIO)



  Max. Number of input  Digital Input 64 Channel
 Max. Number of output  Digital Output 64 ChannelL
 ASIC LSI  PIX132

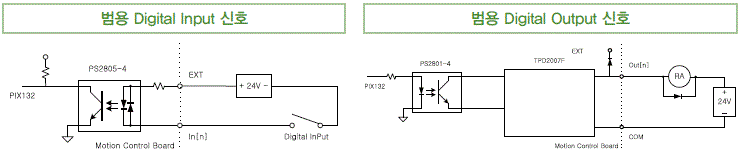

 Digital inputs  Input Common : 8 Channel
 Software Filter:1μs~32ms
 Simultaneous Latch:64 Channel
 Input response time:100μs
 Input resistance:4.7KΩ
 Input Voltage:24V
 Input Operating Current:5mA/ch
 Digital outputs  Output common:8 Channel
 Output response time:10μs
 Simultaneous output:64 Channel
 Output type:Darlington sink drive
 Output voltage:24V
 OutputOperating Current:300mA/ch, 125mA/8ch
 PCI Local bus interface  32bit PCI bus, Rev. 2.1, 33MHz (Universal board)
 Connectors  4 * 68-pin VHDCI-type connector
 5V Slot power supply (input)  +5V DC±5%, 190mA Max
 Operation temperature  0℃ ~ 50℃
 Storage temperature  -20℃ ~ 70℃
 Humidity  10% ~ 80% Non Condensing
 Dimension  174.6 (W) mm X 106.7 (L) mm

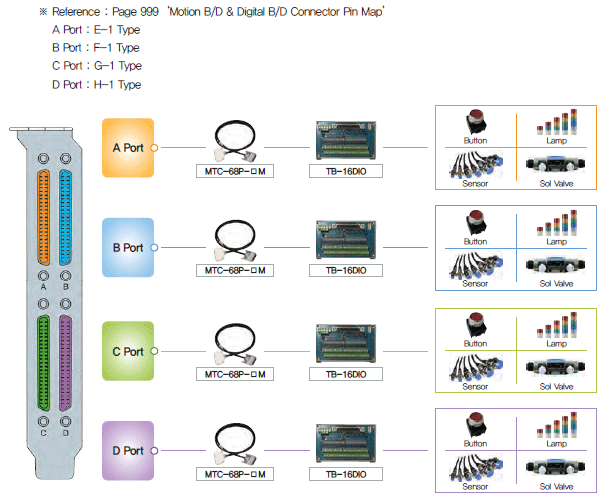

Connector Pin Map
