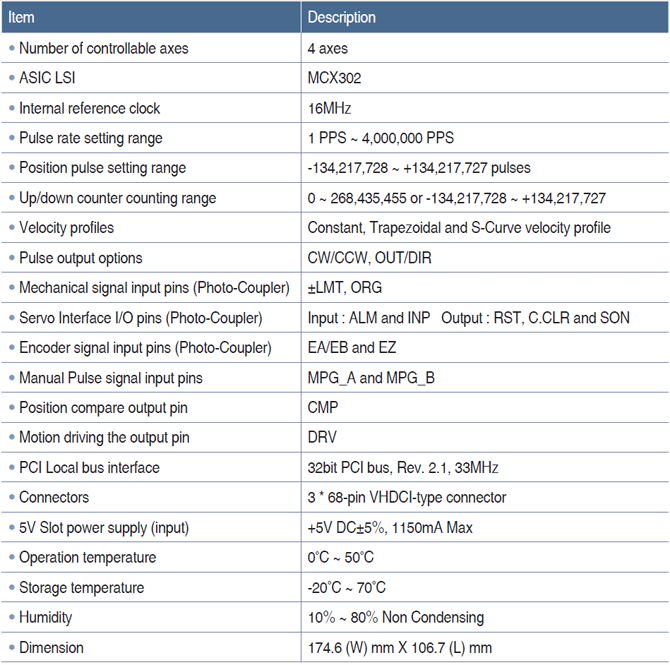

 4 Axes motion controller |
| 32 Channel isolated digital input |
| 32 Channel isolated digital output |
| Maximum output frequency of 4 MPPS |
| Trapezoidal and S-curve velocity profiles |
| 10 home return modes with searching |
| Velocity and Position change override |
| Hardware-controlled position compared trigger output |
| Manual pulse input interface |
| Simultaneous start/stop operation up to 2 axes |
| Hardware emergency input |
| Digital Input Integral filter |
| Over-current protection circuit(Only OP-16DIO-HC) |
|
[ 파생모델 ]
TMC-AC400P (4축 0/0점 DI/DIO)
TMC-AC416P (4축 16/16점 DI/DIO)
|
