  8 Axes motion controller
  32 Channel isolated digital input
  32 Channel isolated digital output
  Maximum output frequency of 4 MPPS
  Trapezoidal and S-curve velocity profiles
  10home return modes with searching
  Velocity and Position change override
  Manual pulse input interface
  Simultaneous start/stoop operation up to 4 axes
  Hardware emergency input
  Digital Input Integral Filter
  Over-current protection circuit(Only OP-16DIO-HC)
  [ 파생모델 ]

  TMC-AC800P (8축 0/0점 DIO)
  TMC-AC816P (8축 16/16점 DIO)

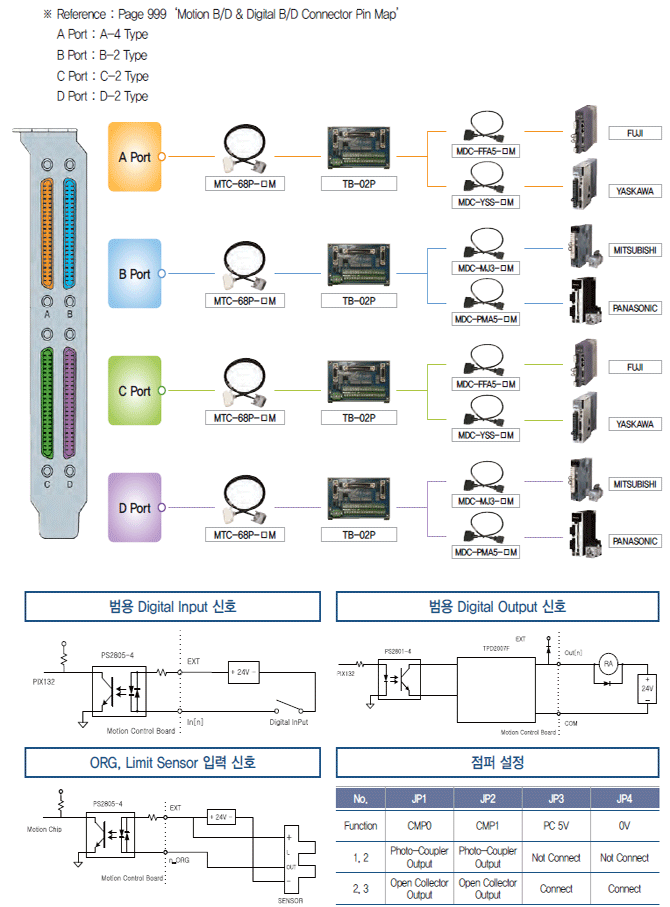

Connector Pin Map
