TMC-AE64DIO TMC-AC432P TMC-AC832P TMC-AD448P
TMC-BA448P TMC-BA832P TB-02P TB-16DIO

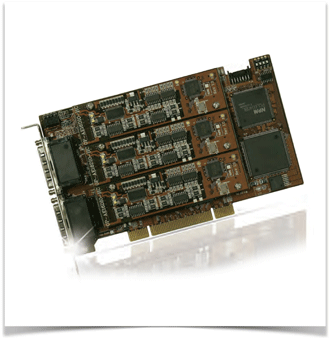

  4 Axes motion controller
  48 Channel isolated digital input
  48 Channel isolated digital output
  Maximum output frequency of 6.55 MPPS
  Constant,Trapezoidal and S-curve velocity profiles
  14 home return modes with searching
  Any 2~4 of 4 axes linear interpolation
  Any 2 of 4 axes circular interpolation
  Any 3 of 4 axes helical interpolation
  Velocity and position change override
  Hardware-controlled Position compared trigger output
  Manual pulse input interface
 Simultaneous start/stop operation up to 4 axes
  Master-Slave synchronous control
  Deviation error detection during Gantry operation
  Hardware emergency input
  Digital Input Integral Filter
  Over-current protection circuit(Only OP-16DIO-HC)

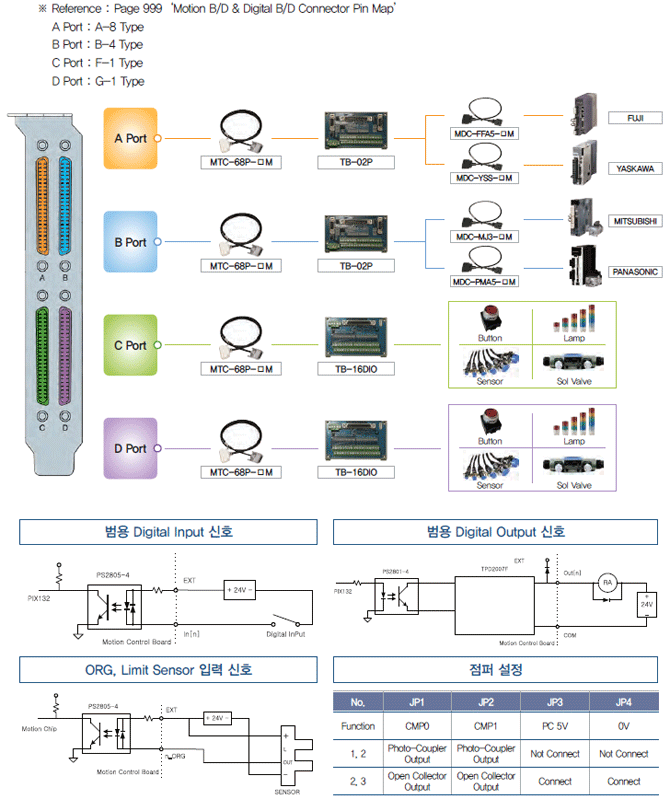

Connector Pin Map
