TMC-AE64DIO TMC-AC432P TMC-AC832P TMC-AD448P
TMC-BA448P TMC-BA832P TB-02P TB-16DIO

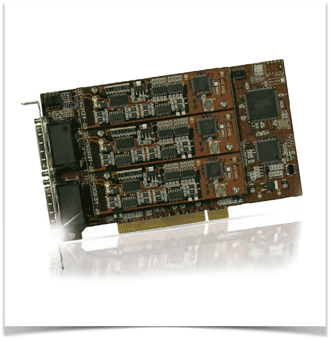

  4 Axes motion controller
  48 Channel isolated digital input
  48 Channel isolated digital output
 Maximum output frequency of 4 MPPS
  Trapezoidal and S-curve velocity profiles
  10 home return modes with searching
  Any 2~3 of 4 axes linear interpolation
  Any 2 of 4 axes circular interpolation
  Velocity and Position change override
  Hardware-controlled position compared trigger output
  Manual pulse input interface
  Simultaneous start/stop operation up to 4 axes
  Hardware emergency input
  Digital Input Integral filter
  Over-current protection circuit(Only OP-16DIO-HC)
[ 파생모델 ]

TMC-AD400P (4축 0/0점 DI/DIO)
TMC-AD416P (4축 16/16점 DI/DIO)
TMC-AD432P (4축 32/32점 DI/DIO)

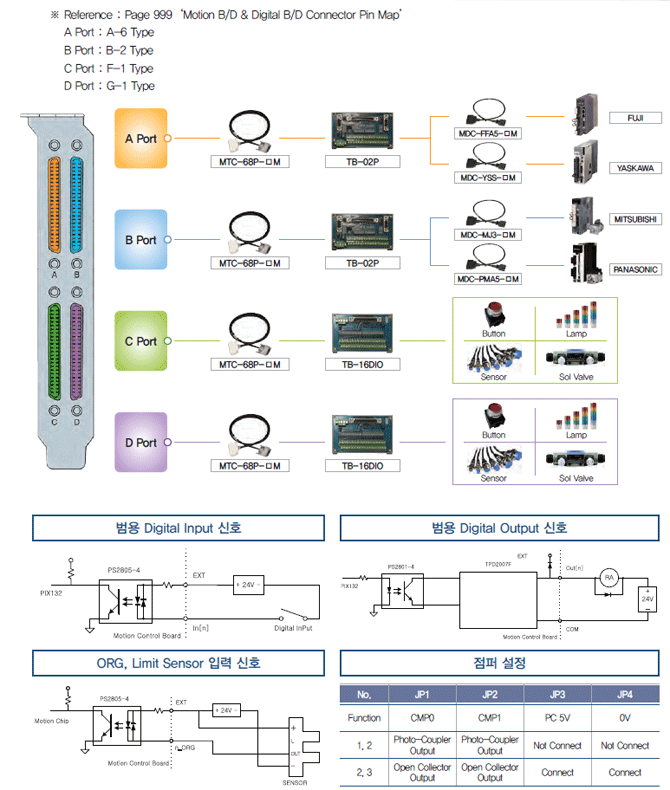

Connector Pin Map
